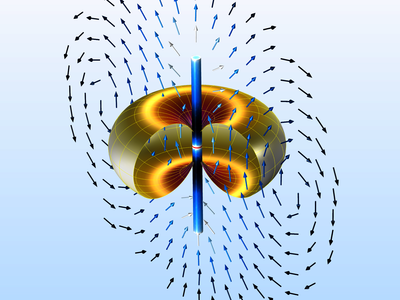

A dipole antenna is a basic radio antenna made up of two symmetrical conductive elements, such as wires or rods. It is designed to transmit and receive radio waves, with its length typically matching the wavelength of the signals it processes. The feedline is connected at the center, where the electrical signal is applied or received. Dipole antennas are popular because they are simple, efficient, and widely used in wireless communication. They also serve as the foundation for many advanced antenna designs.

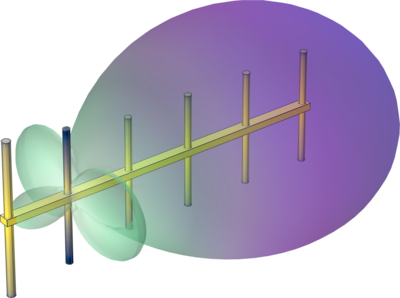

The Yagi-Uda antenna is a directional antenna commonly used for radio and TV reception. It consists of a driven element, a reflector, and multiple directors, all aligned on a boom. The reflector boosts signal strength by blocking interference from behind, while the directors focus the signal forward, increasing gain. This design helps the antenna transmit or receive signals in a specific direction, making it a simple and effective solution that has been used for many years.

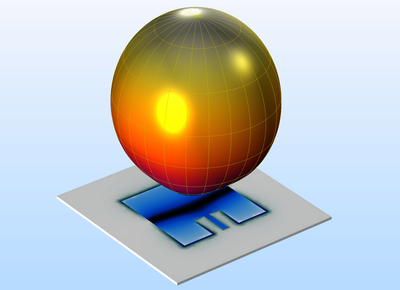

A microstrip patch antenna is a compact, low-profile antenna made by etching a radiating patch onto a dielectric substrate, with a ground plane on the other side. The size of the patch determines its resonant frequency, making it useful for various wireless applications. It is easy to manufacture, cost-effective, and integrates well with planar circuits. However, it typically has a narrow bandwidth and lower gain compared to other antennas. Due to its compact size and easy integration, it is widely used in devices like mobile phones and GPS receivers.

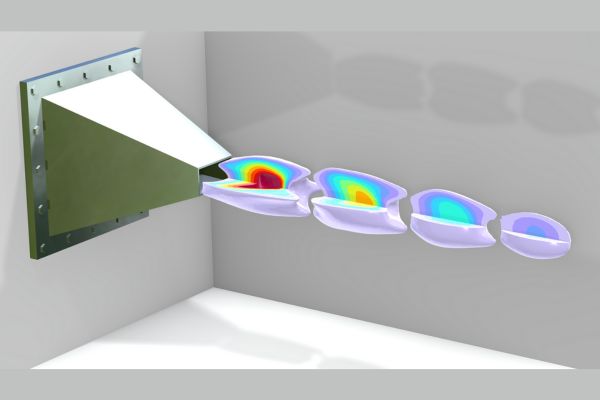

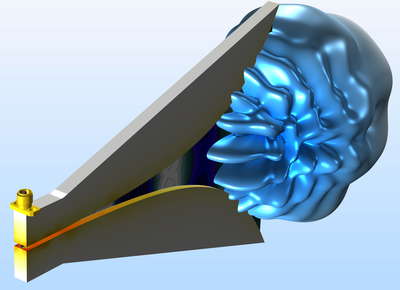

A horn antenna is a flared waveguide that efficiently focuses radio waves into a directed beam. It is commonly used for microwave frequencies, providing high gain and minimal signal loss. These antennas are often used as feed horns for larger systems like satellite dishes and radar. Their design reduces reflections and supports broadband operation. Horn antennas are popular due to their simple structure and reliable performance across various applications.

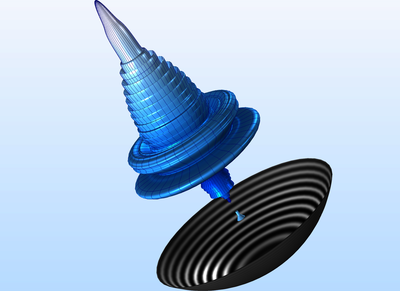

A parabolic antenna features a curved, dish-shaped reflector that focuses radio waves, allowing it to receive signals from a specific direction or transmit them in a narrow beam. It is commonly used in satellite communication, microwave relays, and radar systems. The parabolic shape directs radio waves to a focal point, improving signal strength. This design provides high gain and strong directionality, making it ideal for long-distance communication.
