Geotechnical Engineering Solutions
Comprehensive Geotechnical & Underground Solutions
Geotechnical & Underground

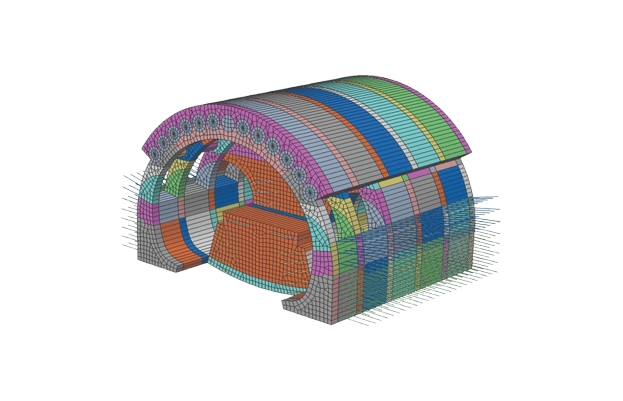

MIDAS GTS NX provides 2D/3D finite element analysis for soil-structure interaction, foundations, tunnels, and excavations.
Solutions include tunnel lining design, slope stability evaluation, seepage/groundwater flow analysis, retaining wall systems, deep excavation design, and soil settlement prediction. Multi-stage construction analysis ensures accurate simulation of real conditions.
Properties / Specifications
- Comprehensive 2D/3D FEM: Provides robust analysis capabilities for a wide range of geotechnical problems.
- Multi-stage Construction Analysis: Accurately simulates real-world staged construction sequences.
- Advanced Material Models: Includes sophisticated soil and rock constitutive models for accurate behavior prediction.
- Seepage & Groundwater Flow: Offers fully coupled flow analysis for groundwater pressure and seepage prediction.
- Automated Meshing & Pre-processing: Streamlines modeling of complex subsurface geometries and stratigraphy.
Applications
Tunnel Lining Design
Analysis of stresses, deformation, and support systems for tunnels of various types.
Slope Stability Evaluation
Evaluates natural and engineered slopes using methods such as strength reduction analysis.
Deep Excavation Design
Simulates deep cuts, bracing systems, and ground movements with high accuracy.
Foundation & Retaining Systems
Supports design of shallow/deep foundations, sheet piles, diaphragm walls, and retaining structures.
Soil Settlement Prediction
Predicts ground settlement under loading, excavation, or groundwater changes.
